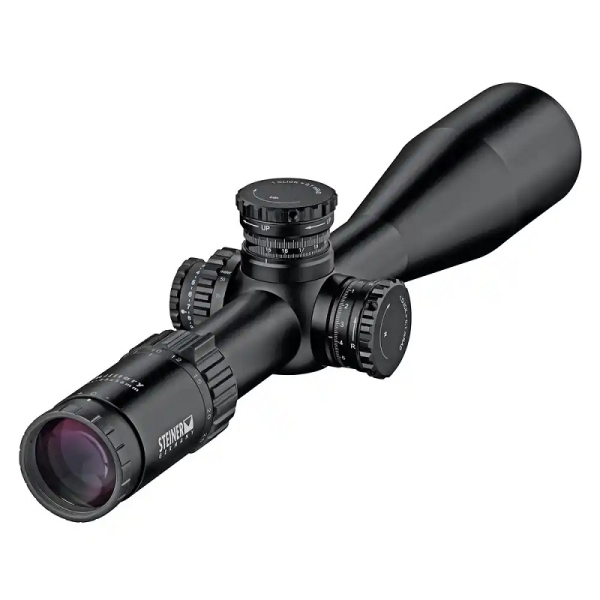

Steiner M5Xi 5–25x56 MSR-2
The telescopic sight of the Bundeswehr and special forces
The riflescope for extreme situations. With its enormous magnification and wide adjustment range, targets at a distance of over 1500 m can theoretically be cleanly captured, but the 5x zoom also allows shots at short distances. The large lens aperture achieves outstanding optical performance under the most adverse lighting conditions.
Manufactured entirely in Germany, the M5Xi series has a first-class design, outstanding optical performance and maximum precision for sport shooters at very long ranges (+1,500m). Absolute clarity even in the worst light conditions (94% light transmission) also makes the M5Xi a perfect companion on the hunt. It surpasses the established competition with Steiner's legendary military robustness, excellent handling and unbeatable precision.
- 5x zoom - Provides maximum range at high magnification, a wider field of view at low magnification and eliminates the tunnel effect.
- High-power optics - With a brilliant image and a light transmission of over 94%.
- Intuitive, dimmable reticle illumination - With easy-grip light unit on the center tube. The light intensity can be varied via easy-to-operate rotary knobs for all lighting conditions with 11 light levels (4 x day, 7 x night) and an OFF position between the levels. Battery compartment integrated in the control element.
- Parallax compensation and brightness control housed in the same tower (left) for easy handling.
- Precise side/height adjustment Light and precise for repeated accuracy, with click adjustment that you can hear and feel with every click.
- DuoScale - Patented height adjustment with click indicator on two levels for quick detection of the current setting.
- Extreme robustness - Designed to the highest military standards to withstand forces of up to 900 G on all optical and electronic components. Water pressure tightness up to 10 m thanks to special sealing techniques. Neither dust nor dirt or moisture can penetrate the interior. Fogging or the formation of condensation inside is ruled out with the STEINER nitrogen pressure filling. Temperature fluctuations from -25 °C to +65 °C do not impair functionality.
Magnification min./max.: 5x/25x
Lens diameter: 56 mm
Center tube diameter: 34 mm
Eyepiece diameter: 45 mm
Exit pupil: 9.8-2.2 mm
Field of view at 100m: 7.23 - 1.43 m
Eye relief: 90 - 110 mm
Diopter compensation: +2 to -3
Parallax-free: 50 meters to infinity
Reticle: MSR-2
Reticle in: 1st focal plane
Reticle adjustment per click at 100 m: 1 cm
Weight: 1000 g
Length: 422mm
